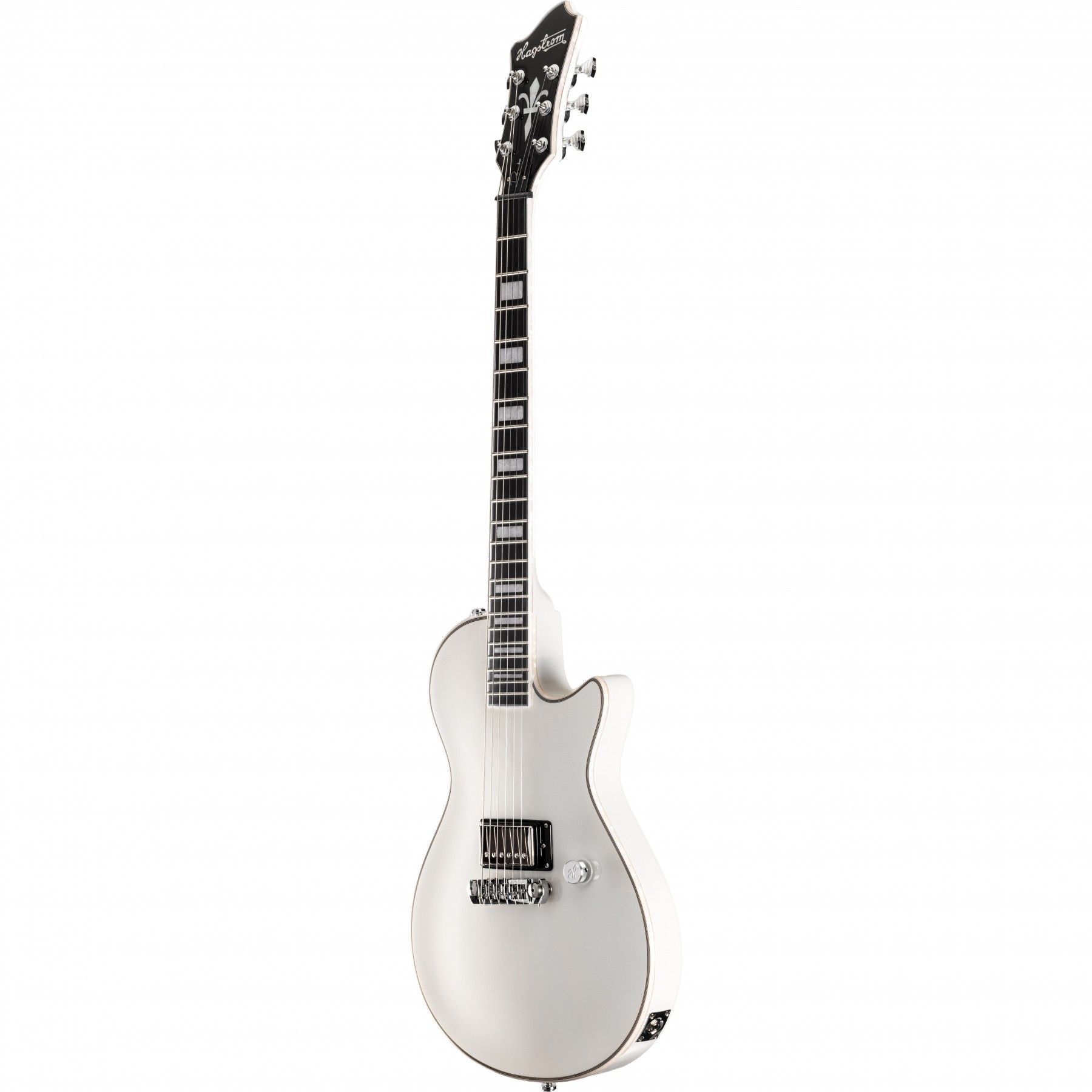

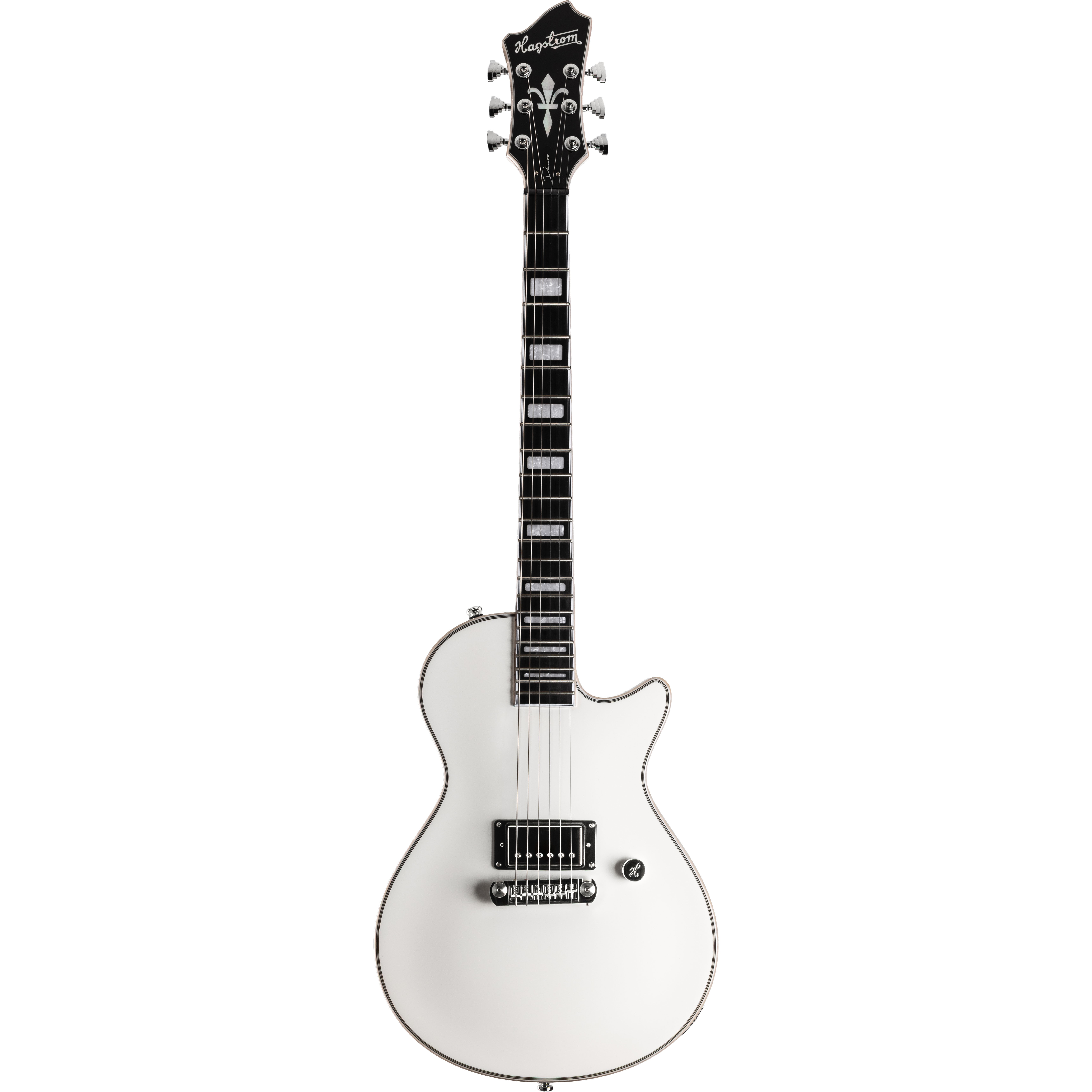

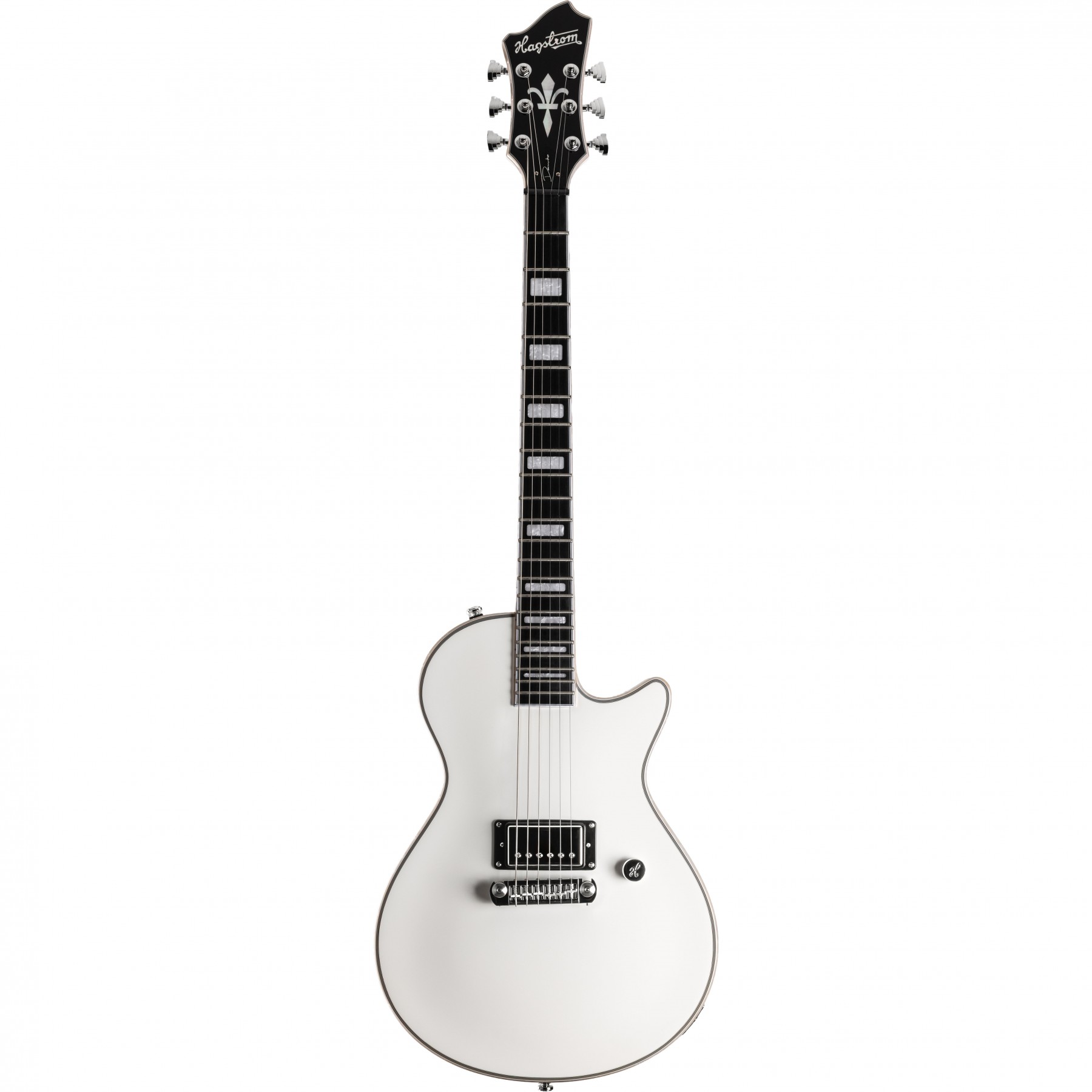

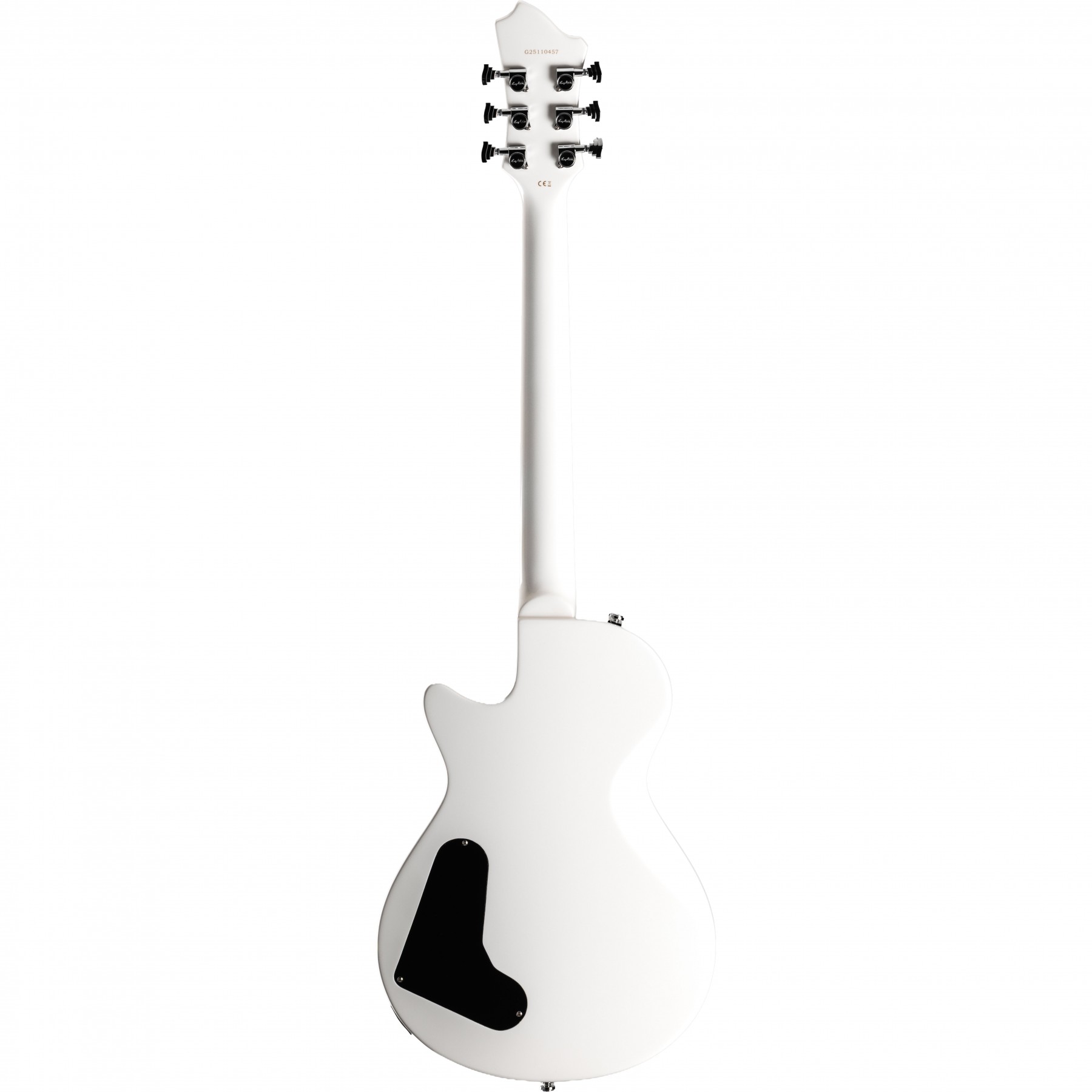

Hagstrom Danko Jones Signature Ultra Max - White

The Hagstrom Danko Jones Signature model began its life during the pandemic, when Danko’s guitar tech, Tim, took a stock Hagstrom Ultra Max and began making a series of focused custom modifications. What started as a modified stage instrument became the foundation for a guitar designed around Danko’s own needs: elegant, simple, powerful, and ready to fill any venue with thick, luscious tone.

The goal was clear: create a no-nonsense rock machine that was simple in function, comfortable to play, and powerful enough to carry an entire set without the need to change guitars.

At its core, the Danko Jones Signature is designed for players who demand performance, reliability, and tone without distraction. Its lightweight feel and carefully shaped body make it comfortable for long shows, while the specially tapered neck removes additional material from the treble side for easier access and smoother playability. At the same time, the neck retains enough depth and substance to give players something solid to grip into.

A key part of the guitar’s voice comes from Hagstrom’s proprietary locking wrap-around bridge. When locked firmly to the body, the bridge helps transfer string vibration directly into the entire instrument, allowing the guitar to resonate more freely and fully. The result is exceptional sustain, increased attack, and a more alive, responsive feel that brings out the richness, depth, and natural tonality of the selected tonewoods.

The heart of the Danko Jones Signature is its custom-made Mango Tone humbucker. Named with a nod to Danko’s own “Mango Kid” nickname, Mango Tone takes the classic PAF foundation and pushes it harder, delivering a juiced-up voice with extra power, grit, and attitude. Inspired by the hotter late-1970s “brown tone” pickup character, it uses AlNiCo 4 magnets and plain enamel wire to produce a medium/high output of approximately 9.75K. The result is a pickup dripping with harmonics, rich midrange, bite, clarity, and muscle. It offers a hint of raw grit, excellent string separation, powerful crunch, and enough warmth to deliver surprisingly rich clean tones when rolled back. Versatile, expressive, and direct, Mango Tone gives the Danko Jones Signature its unmistakable voice.

With a single humbucker and single volume control, everything about this guitar is focused on simplicity and impact. Less load on the circuit means more output to the amp, giving the player a direct, open, and powerful signal. No distractions. No unnecessary controls. Just plug in, turn up, and play.

The Hagstrom Danko Jones Signature is built for both rhythm and lead work, delivering the kind of tone and response that lets the player focus fully on the song, the stage, and the audience.

Simple. Powerful. Elegant. Built to rock.

Body & Construction

• Body Shape: Ultra Max based - single cutaway
• Body Type: Solid body
• Construction: Set-neck construction
• Neck Joint: Long Mortise and Tenon
• Body Material: Mahogany
• Top Material: Canadian Maple Top
• Body Binding: White Pearloid, multi-ply Black/White
• Body Finish: Polyester
• Available Finish: White Gloss

Neck & Fingerboard

• Neck Material: Mahogany
• Neck Profile: Custom Danko Jones tapered neck profile 19mm @ 1st fret, 20.5mm @ 12th fret.
• Neck Description: Additional neck material removed from the treble side for improved comfort and easier upper-register playability, while retaining enough neck depth and substance for a solid grip
• Scale Length: 25.5”
• Truss Rod: Hagstrom H-Expander™ 2-way truss rod
• Fingerboard Material: Resinator
• Fingerboard Radius: 14.4”
• Frets: Nickel
• Fret Size: Jumbo 2.6mm width, 1.5mm height
• Position Inlays: White Pearloid
• Nut Material: GraphTech Black Tusq
• Nut Width: 43mm

Electronics

• Pickup Configuration: 1 × Humbucker
• Pickup Position: Bridge
• Pickup Model: Hagstrom “Mango Tone” Custom humbucker
• Pickup Type: Medium/high-output PAF-inspired humbucker
• DC Resistance: Approx. 9.75K
• Magnet: AlNiCo 4
• Coil Wire: Plain enamel
• Voicing: Juiced-up late-1970s PAF character with additional output, grit, attack, with great string separation
• Controls: 1 × Master Volume
• Potentiometer: 500K volume
• Output Jack: Standard mono output jack

Electronics Concept:
The single-humbucker / single-volume configuration keeps the signal path simple and direct, delivering strong
output, clear attack, and a more open response from the pickup to the amplifier.

Hardware

• Bridge: Hagstrom proprietary locking wrap-around bridge
• Bridge Description: Locks firmly to the body to improve string-energy transfer, sustain, attack, and tonal response
• Machine Heads: Hagstrom 19:1 Ratio
• Hardware Finish: Chrome

Strings & Setup

• Factory String Gauge: 10-46
• Intended Playing Style: Rock, hard rock, rhythm, lead, high-energy live performance
